B3屏障型号

Aygün B3 屏障型号灭菌盒根据用户偏好设计，可在单个灭菌盒中提供不同的过滤器，即无需购买新盖子，用户就可以更换盖子上的过滤器。Aygün B3屏障型号灭菌盒可与 3 种不同的过滤器一起使用。

Aygün B3 屏障型号灭菌盒有五种不同的长度、宽度和高度。所有型号和尺寸都有特定的消毒篮和组件，可以在以下部分查看。热敏锁能够保证无菌状态。该型号灭菌盒的指示窗将灭菌结果可视化，无需打开盖子就可目视指示卡结果。

B3屏障型号的工作机制和维护

B3屏障型号设计了3个不同的灭菌盒组。它无需更换盒盖就可以使用3种不同功能。

由于B3屏障型号中使用的机制，灭菌盒可以使用阀门过滤器、标准过滤器和迷宫过滤器。

PTFE特氟龙过滤器

该过滤器与2000次循环PTFE特氟龙滤纸一起使用，使用时就像更换标准型号过滤器一样轻松。该系统中使用的过滤器仅由Aygün提供，该过滤器放置在灭菌盒中。

阀门过滤器

阀门过滤器是Aygün是生物屏障新型号，具有相同的运行原理。该系统与机械阀门一起工作，在高压蒸汽灭菌器中产生正负压，可使用至少5000次循环。

迷宫过滤器

迷宫过滤器是一种基于路易斯·巴斯德原理的流动抑制系统。

它的分离效率为99.99%，可以显著提供更好的微生物和颗粒防护。该过滤器至少可使用5000次循环。

基于巴斯德流动抑制系统设计，其定制的几何特征能够消除气流中的微生物。

由于过滤器中存在屏障，它可以防止随气流漂浮的微生物被引入盒内，同时确保它们利用重力被捕获在过滤屏障中。

该过滤器旨在收集位于管道中的微生物。当屏障组件移动到指向“锁定”符号时，组装完成。

B3 BARRIER MODEL

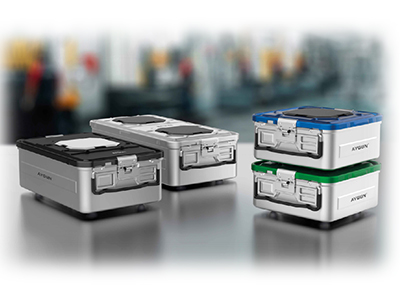

Aygün B3 model sterilization container systems are designed to provide different filtering mechanisms in a single sterilization container according to user preference. Without buying a new lid, the users are able to change the filtering system on the lid. Aygün B3 model sterilization container systems can be used with 3 different filtering mechanisms.

Aygün B3 model sterilization container systems are manufactured as five different length, width and height. All models and sizes have specific baskets and accessories which can be viewed in following parts. Modular auto lock mechanism (thermo lock) promising sterility assurance and indicator window providing visibility of the indicator card result by visual control without opening the lid are also available for this sterilization container model.

B3 Model Working Mechanism and Maintenance

The B3 Model is designed for 3 different sterilization container groups. It can be applied to 3 different features on a single lid without the need for different lid systems.

Thanks to the mechanism used in the B3 model, the container can be used both as a valve system, as a standard filter system and as a bio-stop system.

PTFE System

This filtering mechanism is used with 2000 cycles PTFE Teflon Filter which can be changed by the user easily like in standard model filter-based sterilization containers. The filter used in this system is provided only by Aygün which is placed in a cassette.

Valve system

Valve system is modernized new model of Aygün Bio-Barrier systems and has the same running principal. This system works with mechanic valve with positive and negative pressure occurred during sterilization in autoclave and can be used minimum 5000 cycles.

Bio-Stop System

The Bio-Stop system is a flow inhibition system based on a principle discovered by Louis Pasteur.

With a separation efficiency of 99.99 %, it offers significantly better protection against microbes and particles. This system can be used minimum 5000 cycles.

Designed based on the Pasteur Flow Inhibition system, the custom geometric features of this product offers a technology which eliminates microorganisms in the air flow.

Thanks to the barriers available in the mechanism, it prevents the microorganisms floating with the air flow to be introduced in the system having ensured they are trapped in the barriers also making use of the gravitational force.

The system is designed to collect microorganisms in the tubes located. the assembly is completed when the barrier components are moved to point at the ‘Lock’ symbol.
